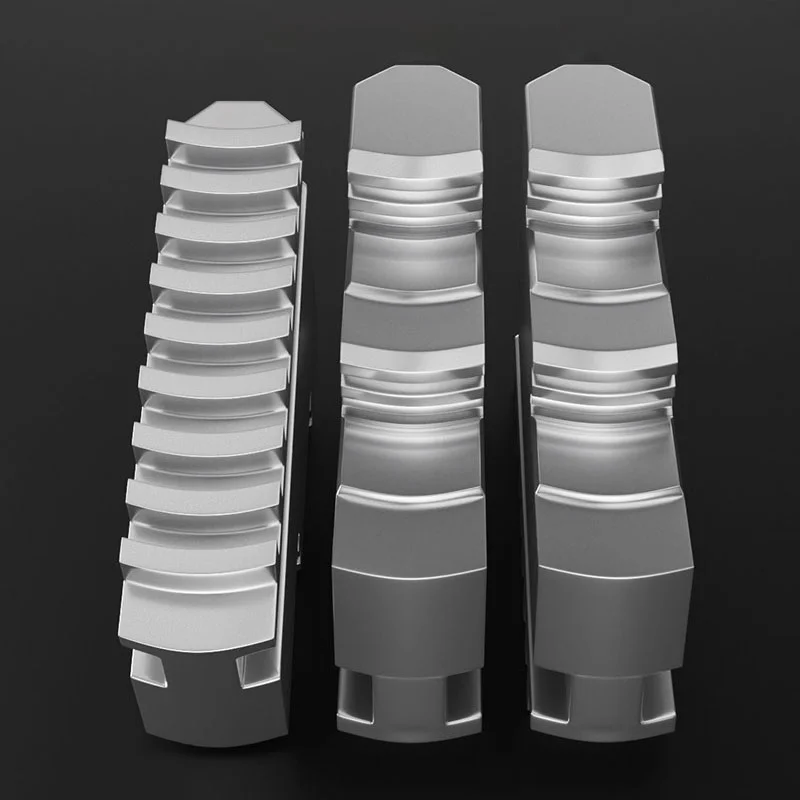

Manual Soft Jaws for 80/100/125/130/160mm Chuck

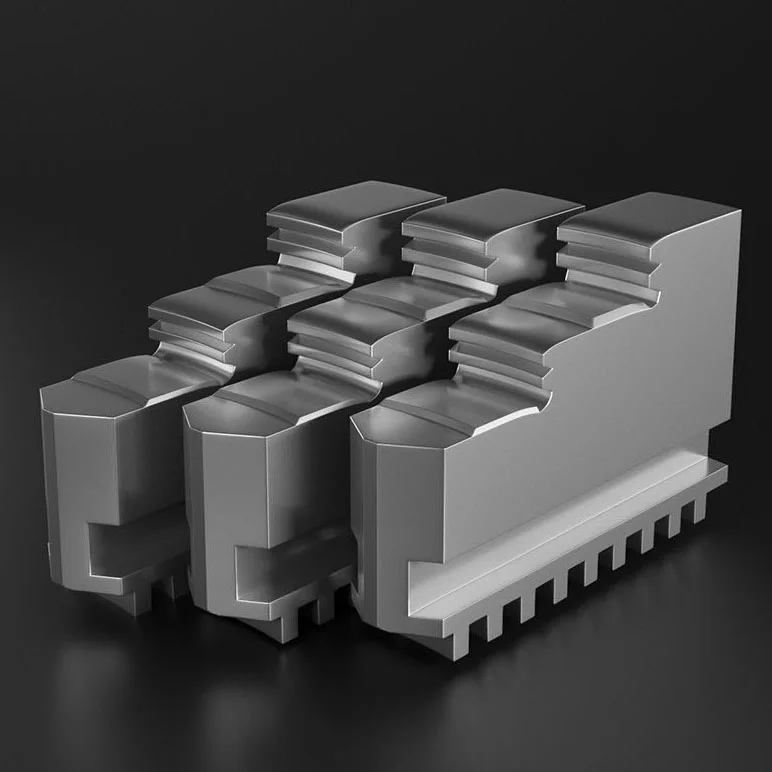

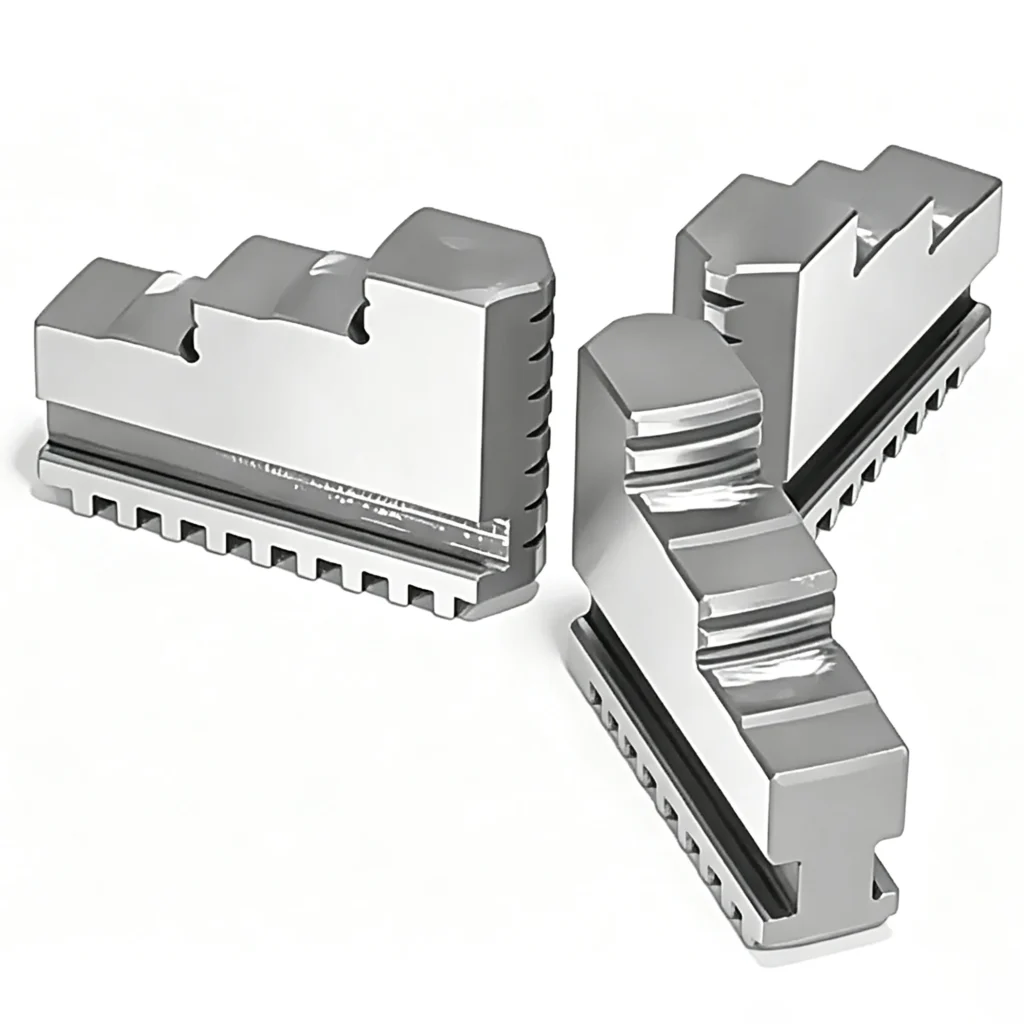

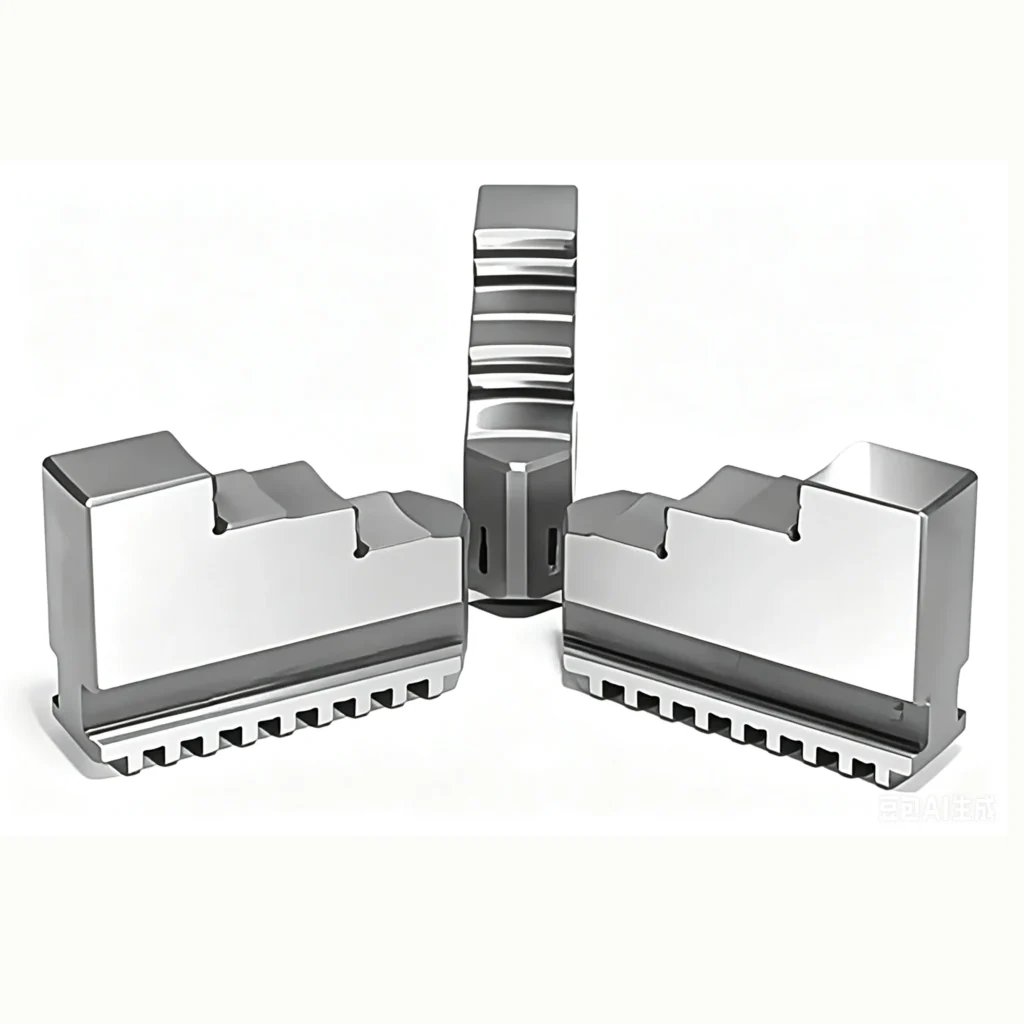

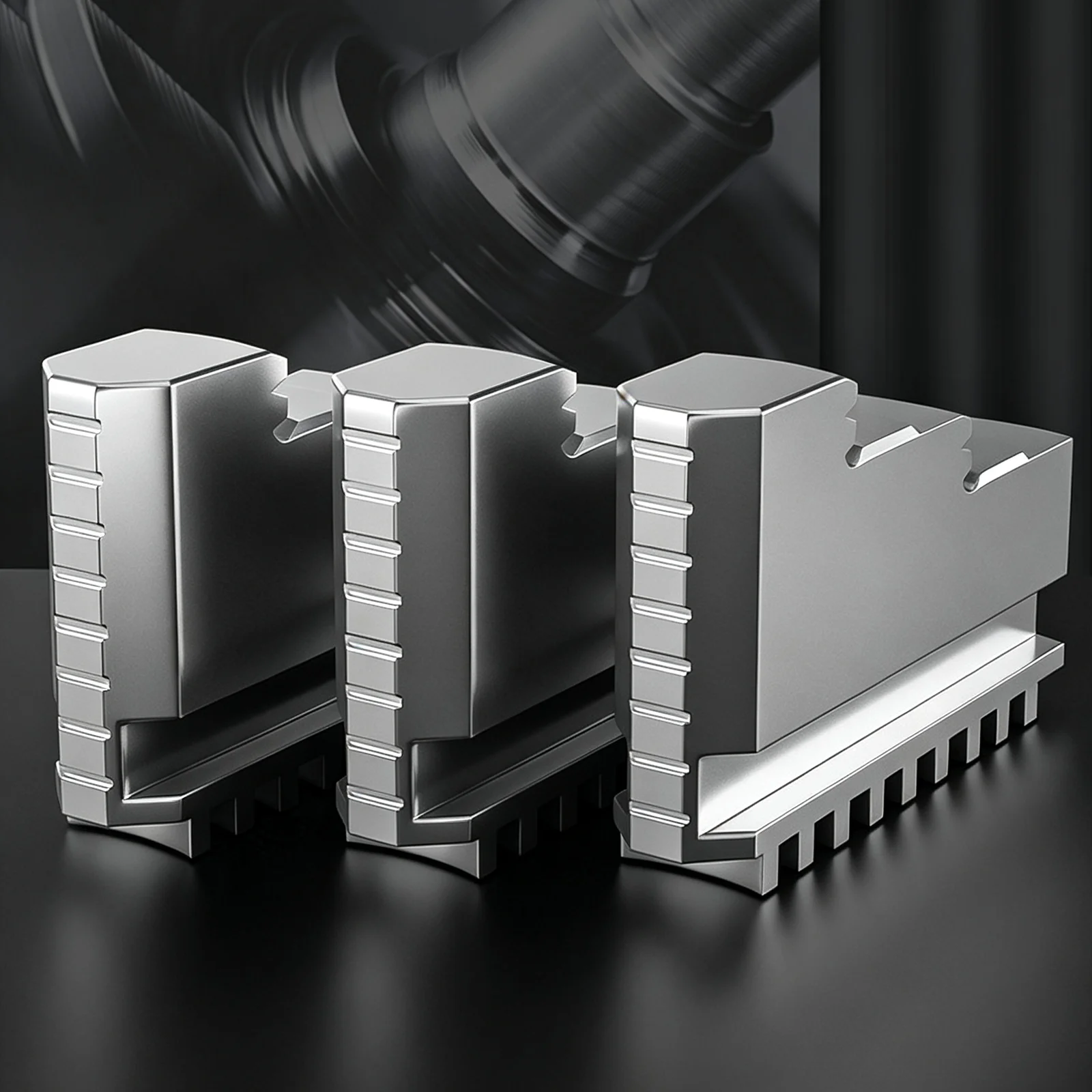

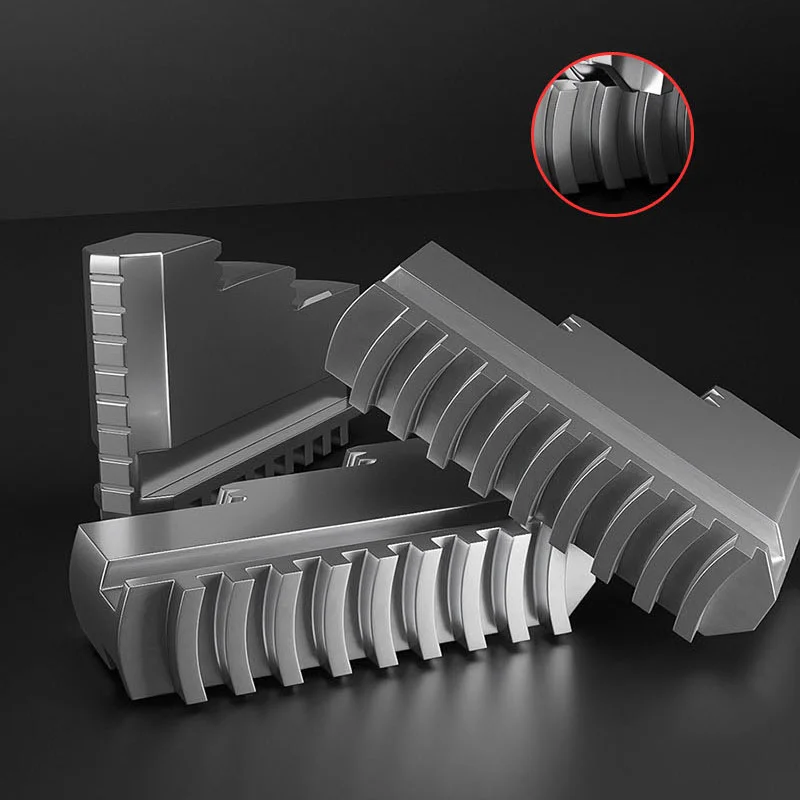

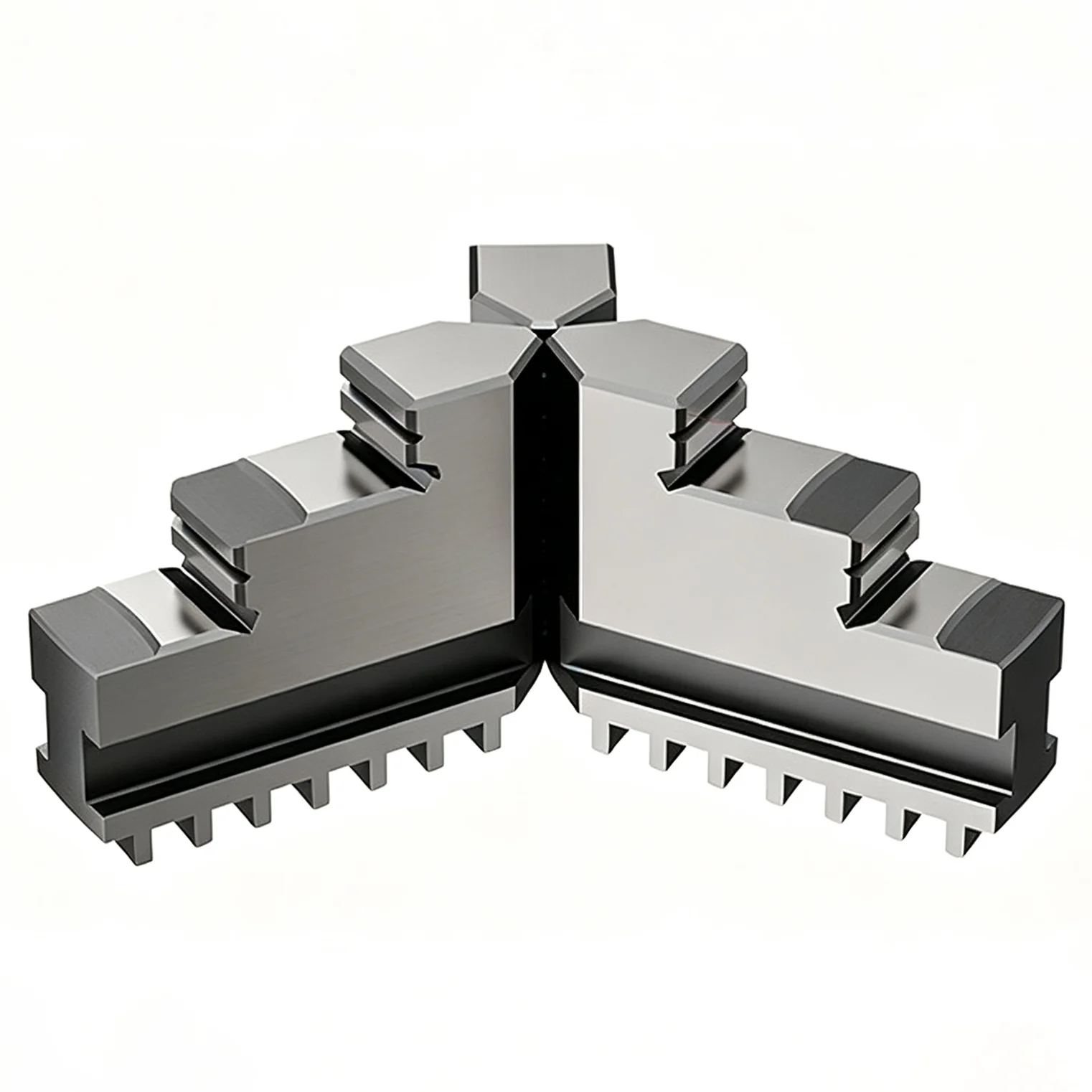

Replacement Manual Soft Jaws designed for 80mm/100mm/125mm/130mm/160mm manual 3-jaw lathe chucks, specially engineered to clamp soft and easily deformable workpieces. Sold as a full set of 3 jaws including positive jaws or reverse negative jaws to accommodate diverse clamping requirements. Crafted from premium 45# carbon steel, they feature stable mechanical properties, excellent wear resistance and a long service lifespan under non-stop lathe turning work.
- Fit Chuck Size: 80mm/100mm/125mm/130mm/160mm Manual 3-Jaw Chuck
- Included: 3 pcs jaws (1 Set=3 Jaws)

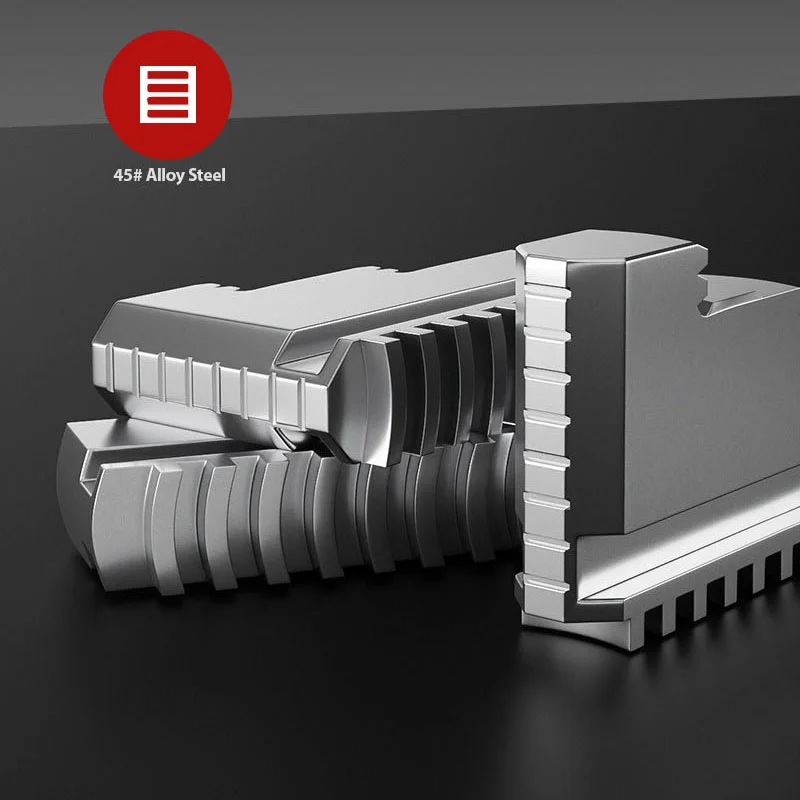

- Material: 45# Steel
Product Specification

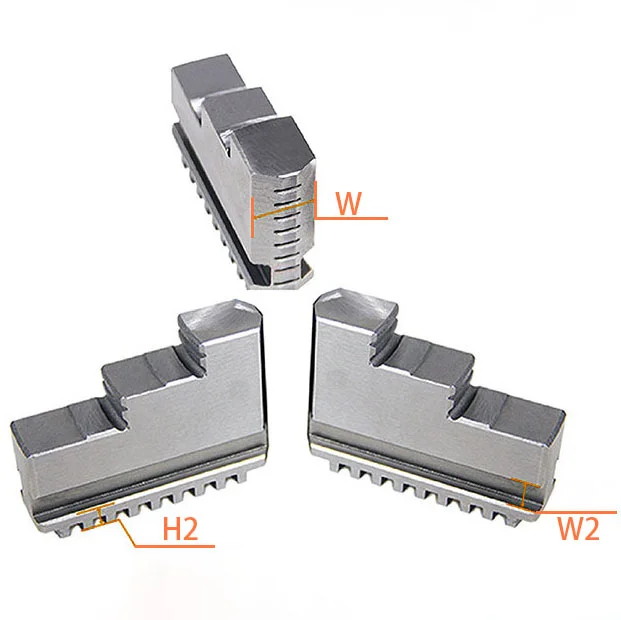

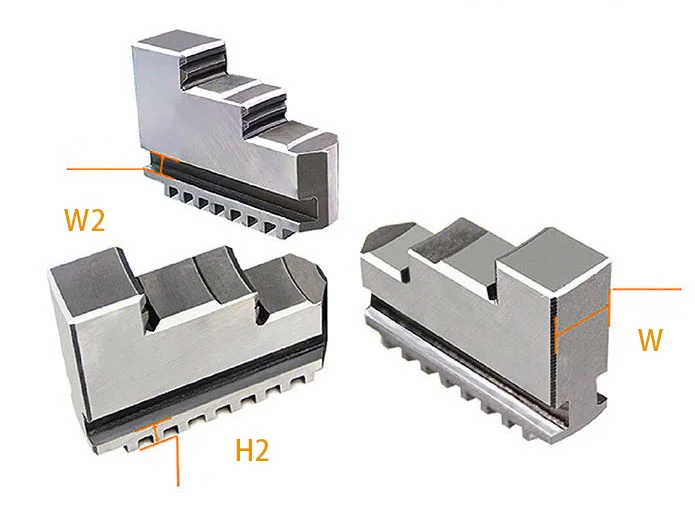

| For Chuck Size (mm) | Overall Length (L) | Width (W) | Slot Width (W2) | Tooth Height (H2) | Approx. Weight (kg) |
|---|---|---|---|---|---|
| 80 | 32 | 12 | 7 | 6 | 0.16 |
| 100 | 44 | 15 | 8 | 7 | 0.36 |
| 125/130 | 54 | 16 | 8 | 7 | 0.6 |
| 160 | 70 | 18.5 | 10 | 9 | 1 |
