Manual Soft Jaws for 250mm Chuck
Replacement Manual Soft Jaws designed for 250mm manual 3-jaw lathe chucks, specially engineered to clamp soft and easily deformable workpieces. Sold as a full set of 3 jaws including positive jaws or reverse negative jaws to accommodate diverse clamping requirements. Crafted from premium 45# carbon steel, they feature stable mechanical properties, excellent wear resistance and a long service lifespan under non-stop lathe turning work.
- Fit Chuck Size: 250mm Manual 3-Jaw Chuck
- Included: 3 pcs jaws (1 Set=3 Jaws)
- Material: 45# Steel

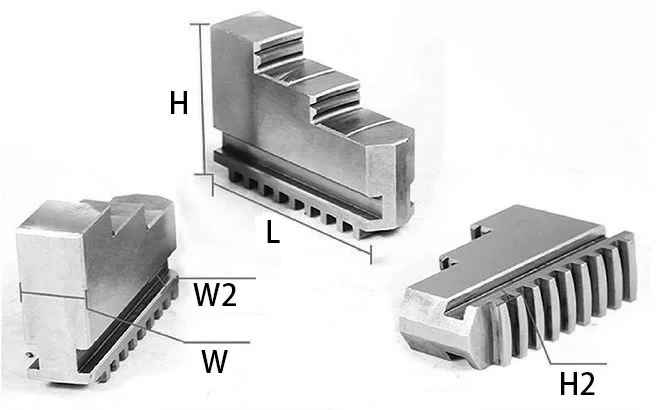

Product Specification
| Overall Length (L) | Width (W) | Overall Height (H) | Slot Width (W2) | Tooth Height (H2) | |
|---|---|---|---|---|---|
| External Jaws | 105.5mm | 27mm | 70mm | 10mm | 11mm |
| Internal Jaws | 106mm | 27mm | 68mm | 10mm | 11mm |
| External Jaws | 106mm | 27mm | 68mm | 10mm | 12mm |
| Internal Jaws | 105.5mm | 27mm | 73.5mm | 10mm | 12mm |
