Hydralic Soft Jaws

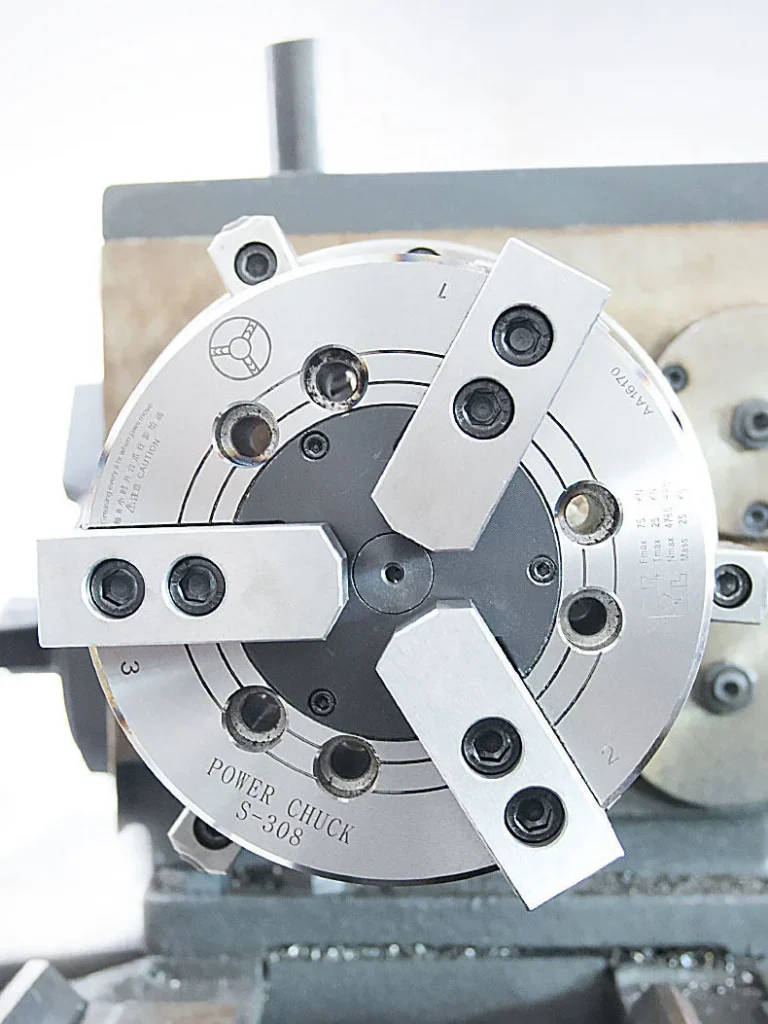

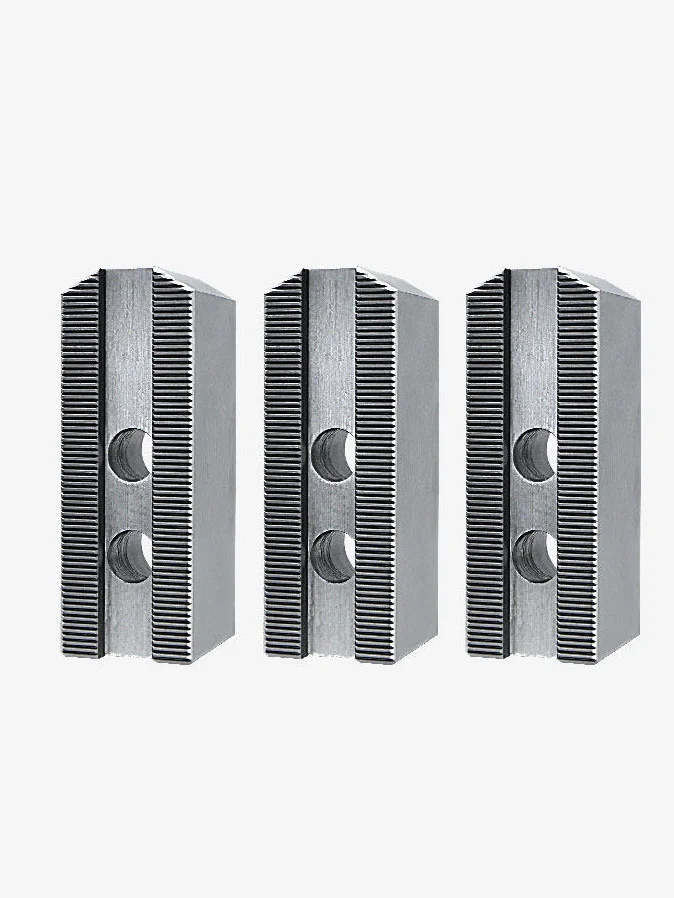

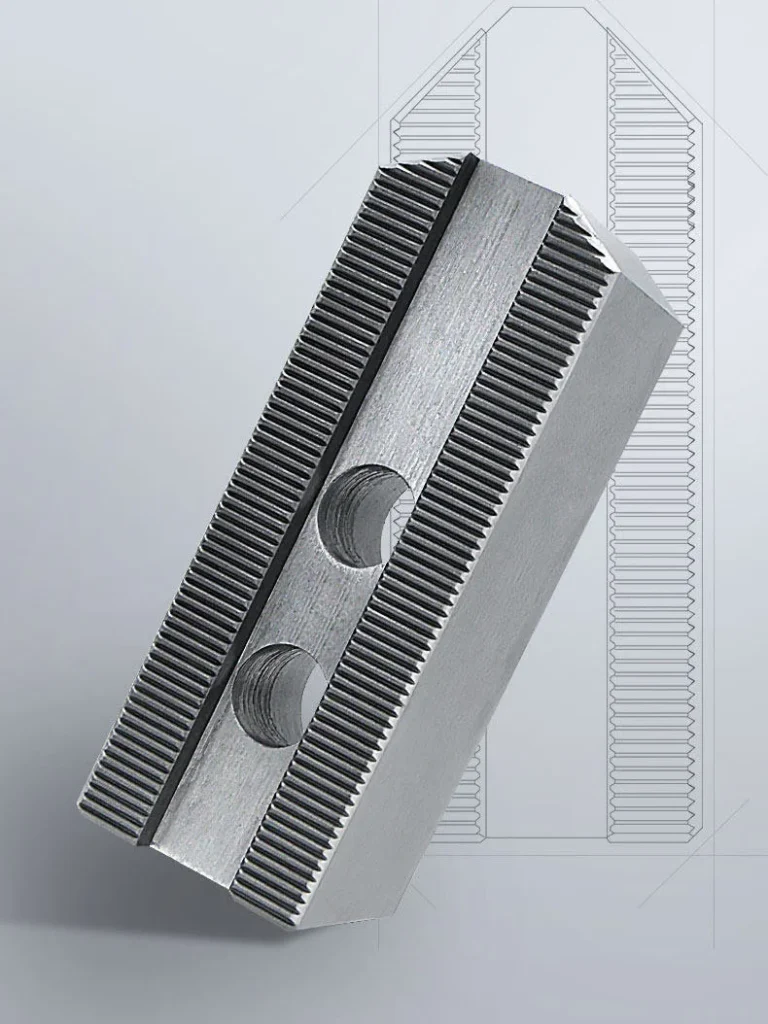

This serial of soft jaws are precision-machined for hydraulic 3-jaw chucks. Non-standard custom profiles welcome – from step jaws to serrated grips, we manufacture to your print.
- Available in different sizes from 4″ to 24″ to fit most standard hydraulic chucks.

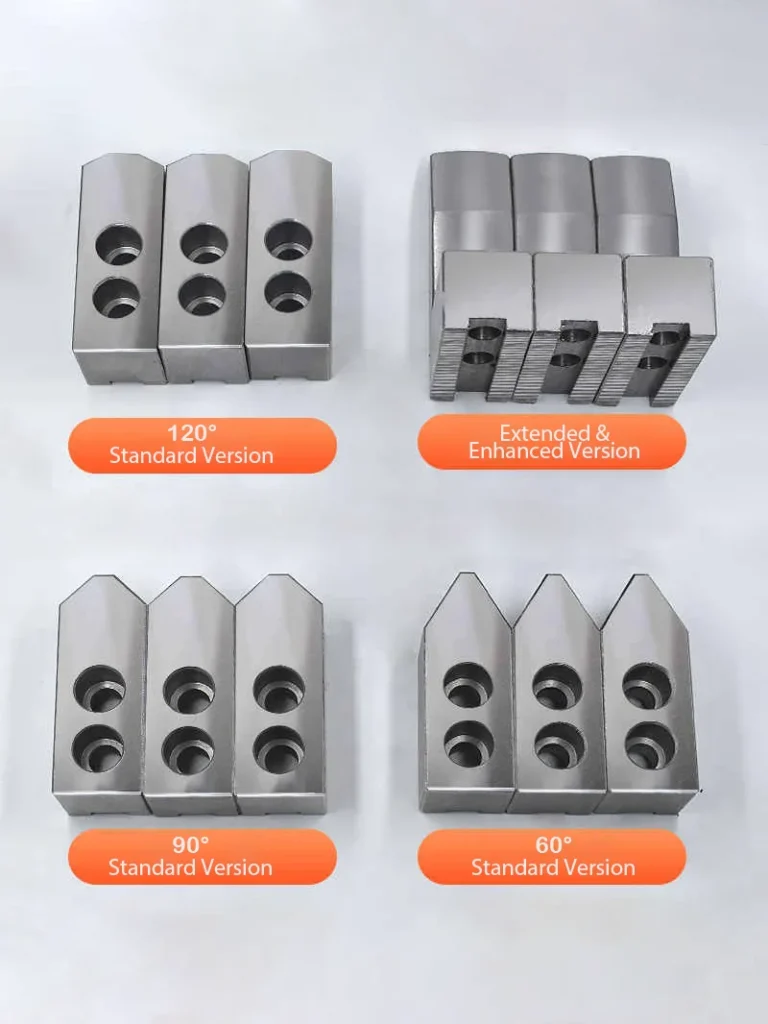

- 60°/90°/120° versions ensure optimal clamping force distribution for 3-jaw chucks.

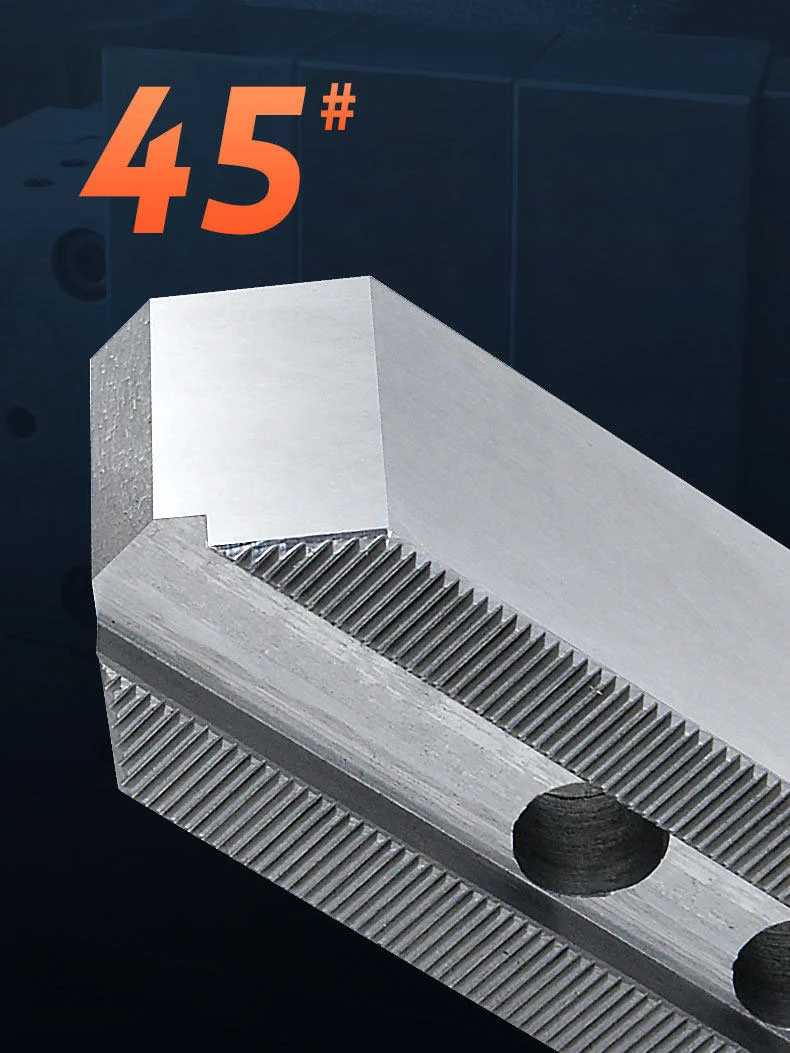

- Extended & Enhanced version offers deeper gripping capacity and delivers superior wear resistance.
- Non-standard sizes or special profiles? Contact us to learn more.

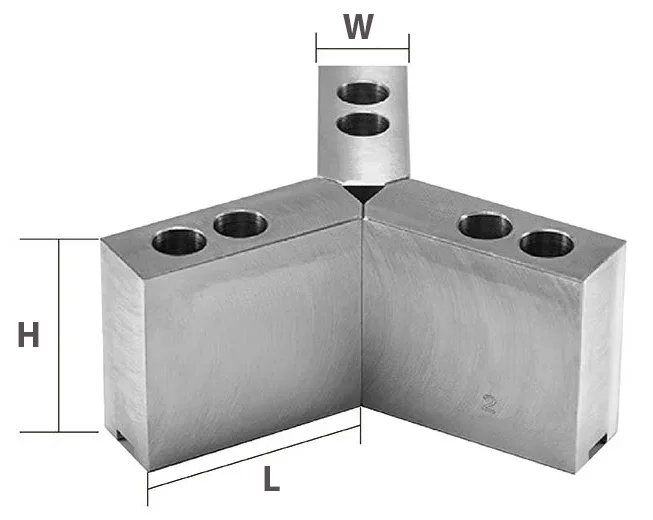

Product Specification
- L-Length;
- W-Width;
- H-Height;
- W1-Groove Width;
- D1-Center Distance;
- P-Tooth Pitch.
| Chuck Size | L (mm) | W (mm) | H (Optional) |
|---|---|---|---|
| 4″ | 49.5 | 23 | 23mm |
| 5″ | 54 | 25 | 30mm(Optional:60°/90°/120°), 40mm, 50mm, 60mm, 70mm, 80mm, 90mm, 100mm |
| 6″ | 73 | 31 | 36mm(Optional:60°/90°/120°), 50mm, 60mm, 70mm, 80mm, 90mm, 100mm, 120mm, 150mm, 180mm |
| 8″ | 95 | 35 | 37mm(Optional:60°/90°/120°), 50mm, 60mm, 70mm, 80mm, 90mm, 100mm, 110mm, 120mm, 130mm, 140mm, 150mm, 160mm, 180mm, 200mm, 220mm, 250mm |
| 10″ | 110 | 40 | 42mm(Optional:60°/90°/120°), 50mm, 60mm, 70mm, 80mm, 90mm, 100mm, 110mm, 120mm, 130mm, 140mm, 150mm, 170mm, 180mm, 200mm, 220mm, 250mm |
| 12″ | 130 | 50 | 50mm(Optional:60°/90°/120°), 60mm, 70mm, 80mm, 90mm, 100mm, 120mm, 150mm, 180mm, 200mm, 250mm |
| 15″ | 165 | 62 | 62mm(Optional:60°/90°/120°), 80mm, 90mm, 100mm, 110mm, 120mm, 140mm, 150mm, 180mm, 200mm |
| 21/24″ | 180 | 65 | 70mm |
| 24″ | 180 | 65 | 100mm, 110mm, 120mm, 130mm, 140mm, 150mm, 180mm, 200mm |
| L | W | H | W1 | D1 | P | |
|---|---|---|---|---|---|---|
| 5″ | 54 | 25 | 30 | 10 | 14 | 1.5×60°/90° |
| 6″ | 73 | 31 | 36 | 12 | 20 | 1.5×60°/90° |
| 8″ | 95 | 35 | 37 | 14 | 25 | 1.5×60°/90° |
| 10″ | 110 | 40 | 42 | 16 | 30 | 1.5×60°/90° |
| 12″ Through | 130 | 50 | 50 | 21 | 30 | 1.5×60°/90° |
| 12″ Solid | 130 | 50 | 50 | 18 | 30 | 1.5×60°/90° |
| 15″ Through | 165 | 62 | 62 | 22 | 43 | 1.5×60°/90° |
| 15″ Solid | 165 | 62 | 62 | 25.5 | 43 | 1.5×60°/90° |
| 21/24″ | 180 | 65 | 70 | 25 | 60 | 3.0×120° |
